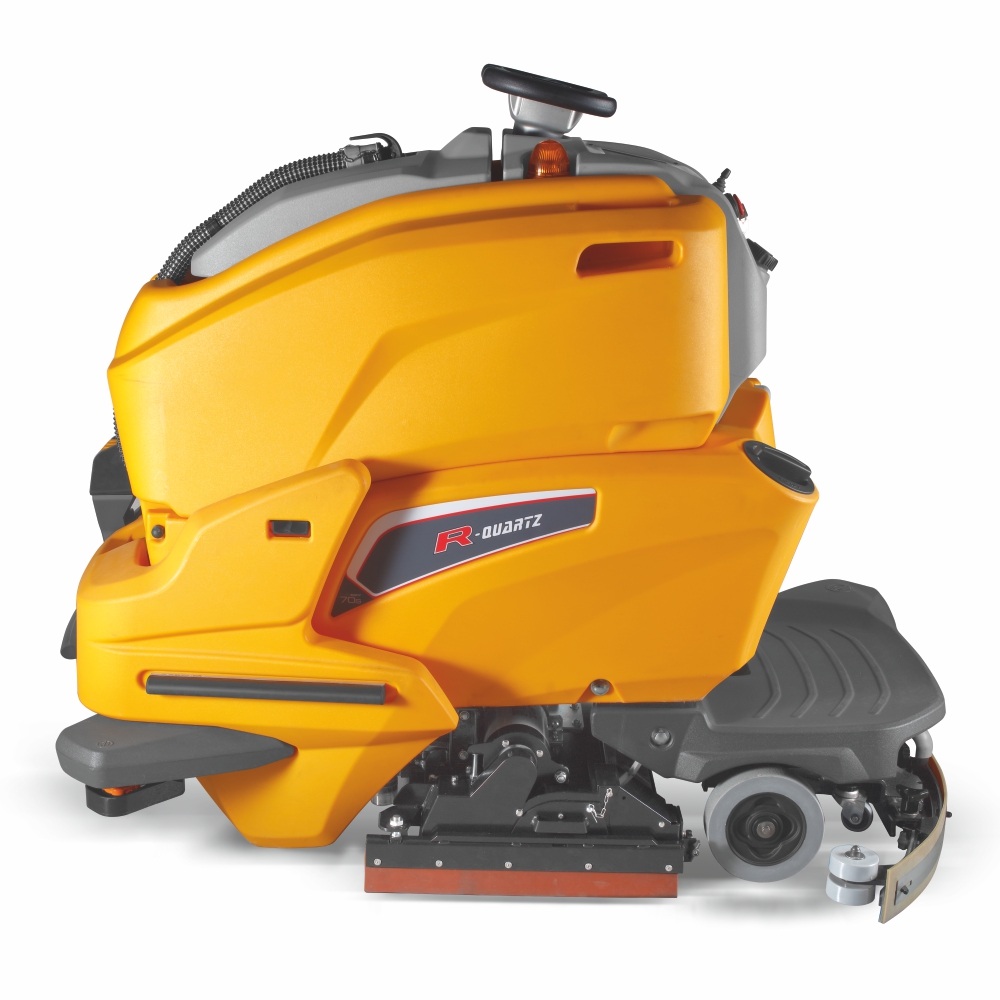

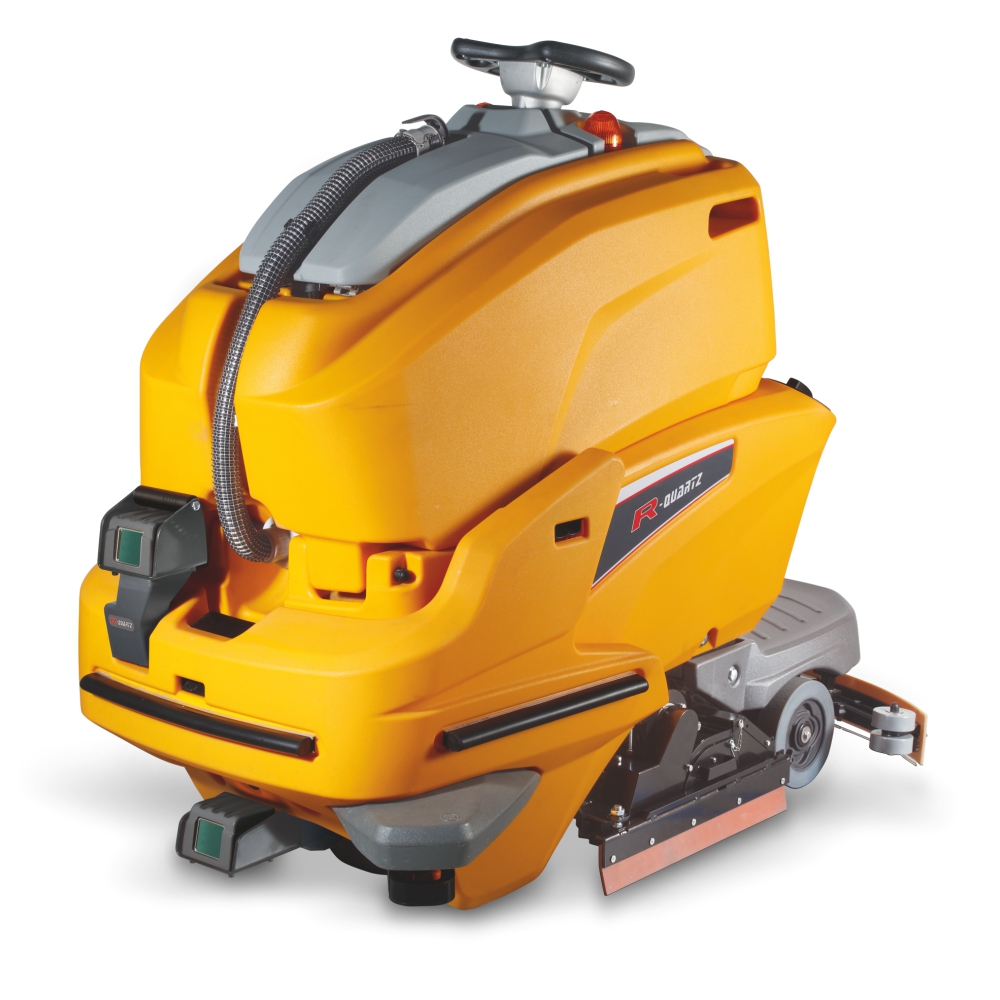

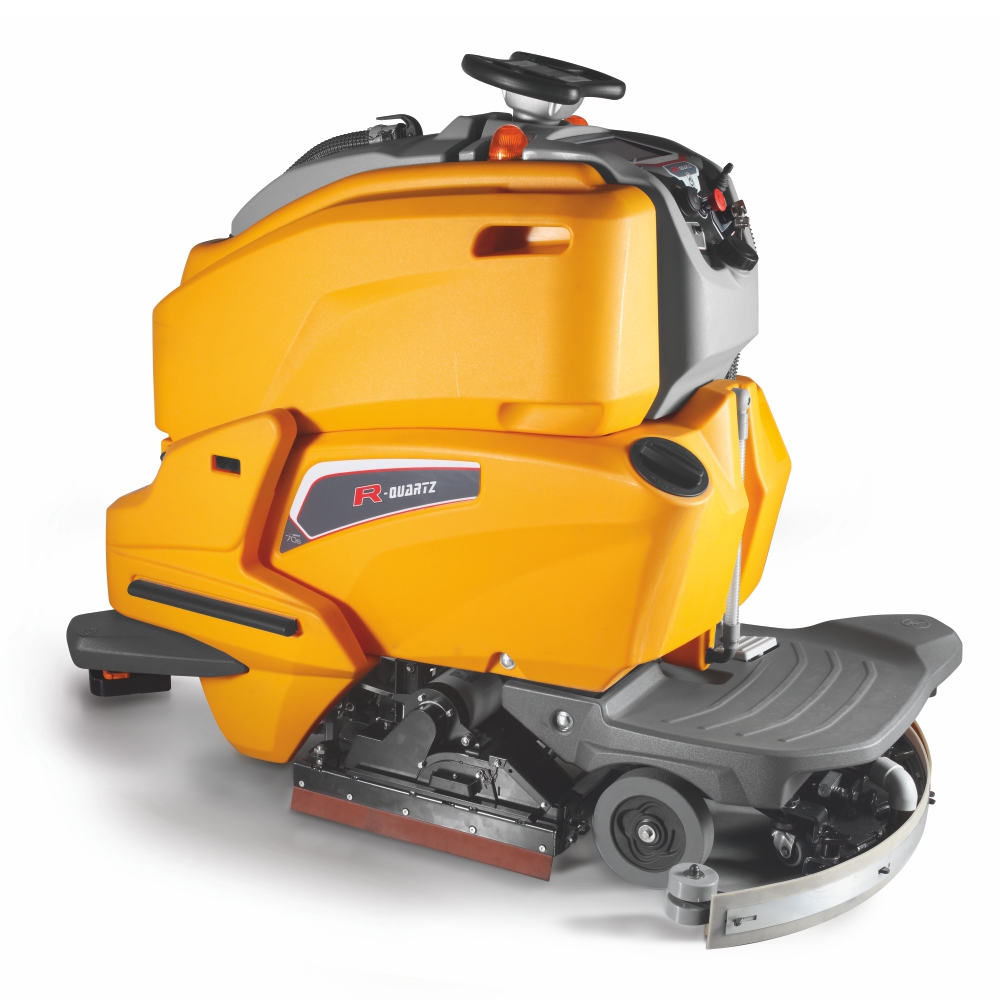

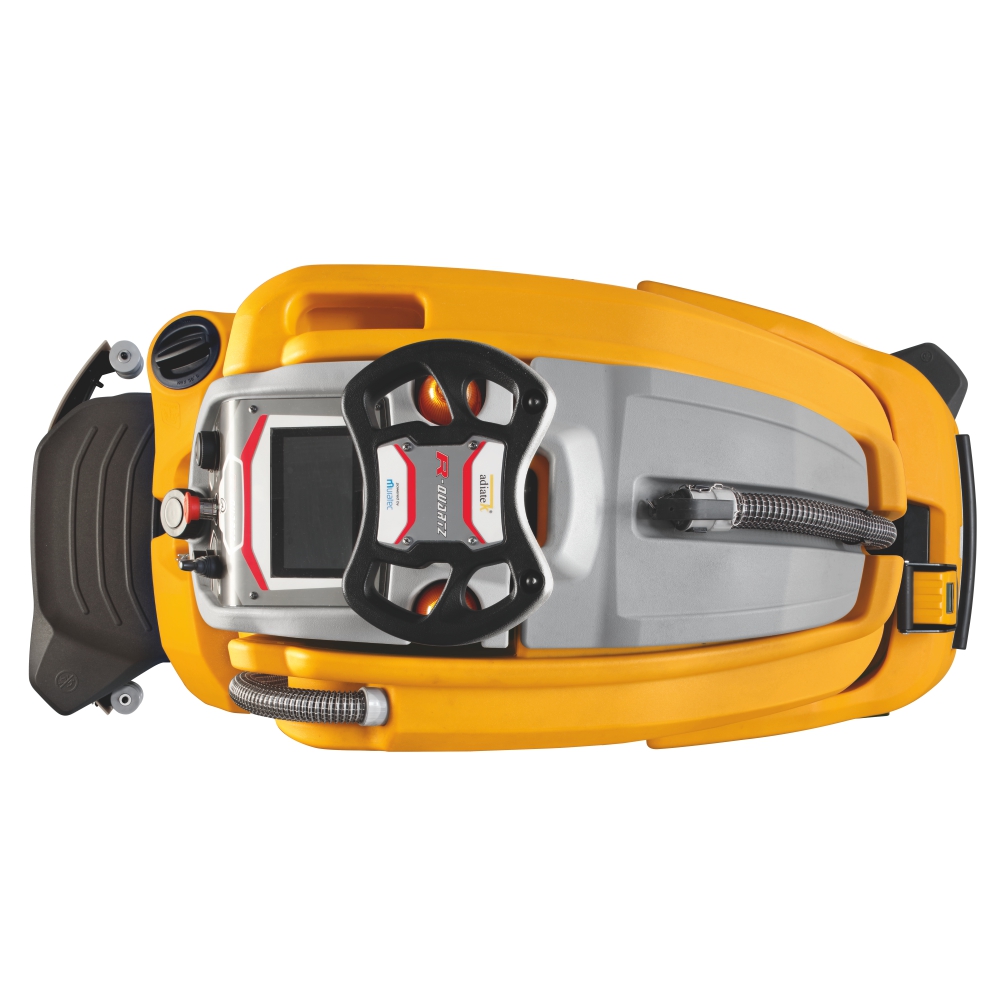

Scrubber R-Quartz 70s

Autonomous driving scrubber R-Quartz 70s

We improve cleaning performance, in the shortest time possible: R-Quartz collects the dirt, cleans, and dries the floor, in a simultaneous, effective, and autonomous way!

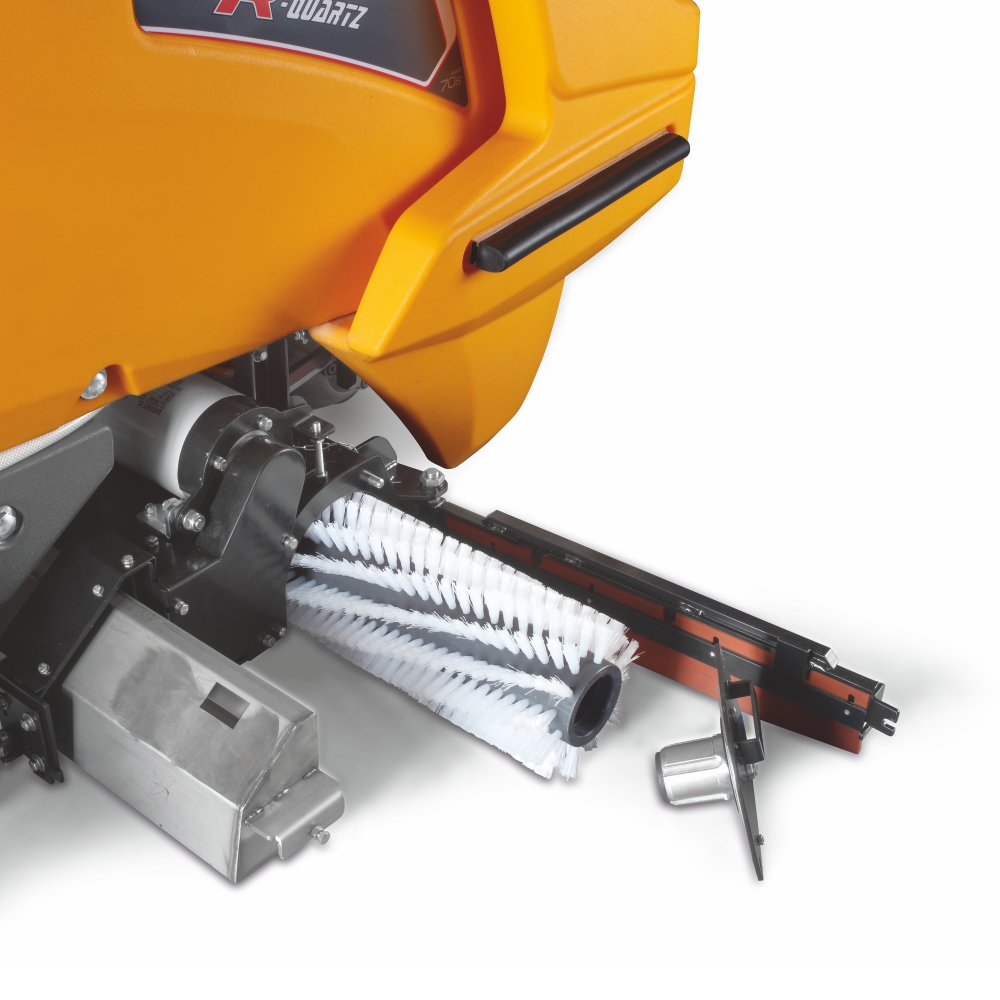

R-Quartz 70s is the first Adiatek ride-on sweeper autonomous driving machine: thanks to the new scrubbing-sweeping brush head it is possible to sweep and clean at the same time, without the constant presence of the operator on the machine, who can complete other tasks.

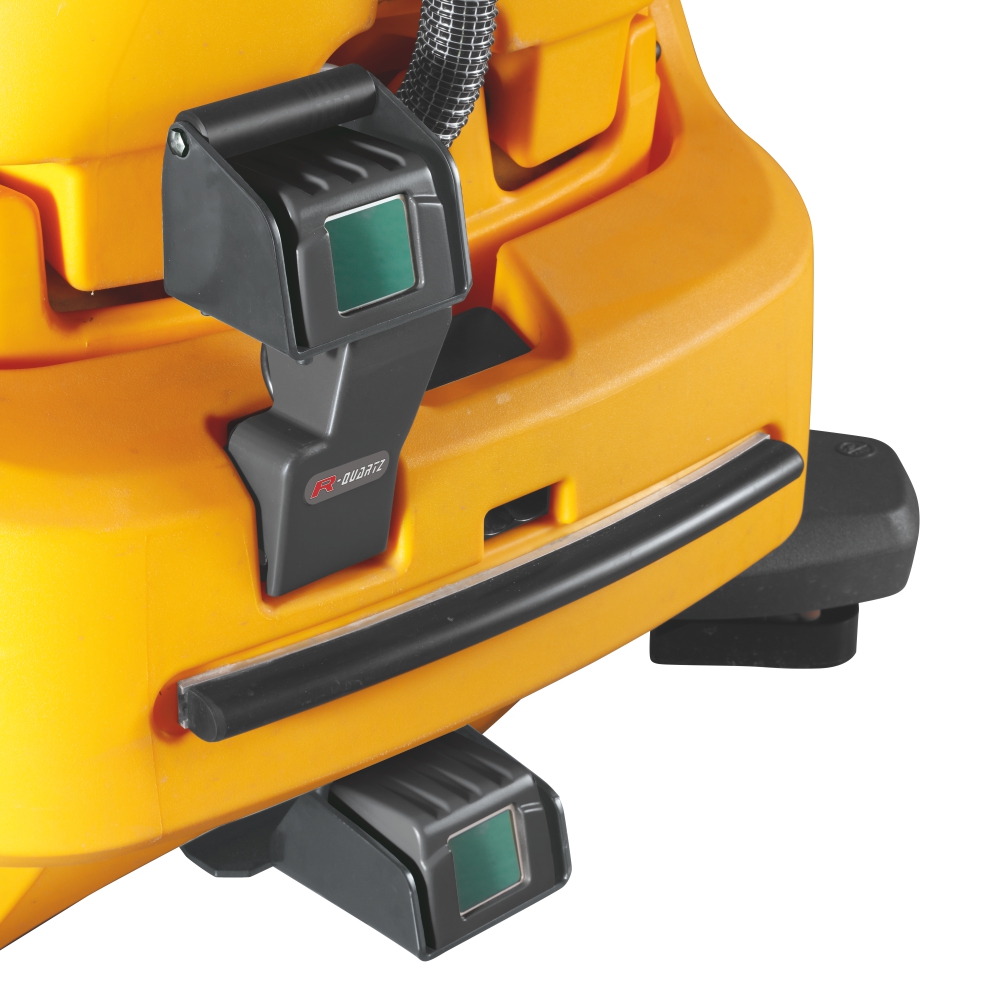

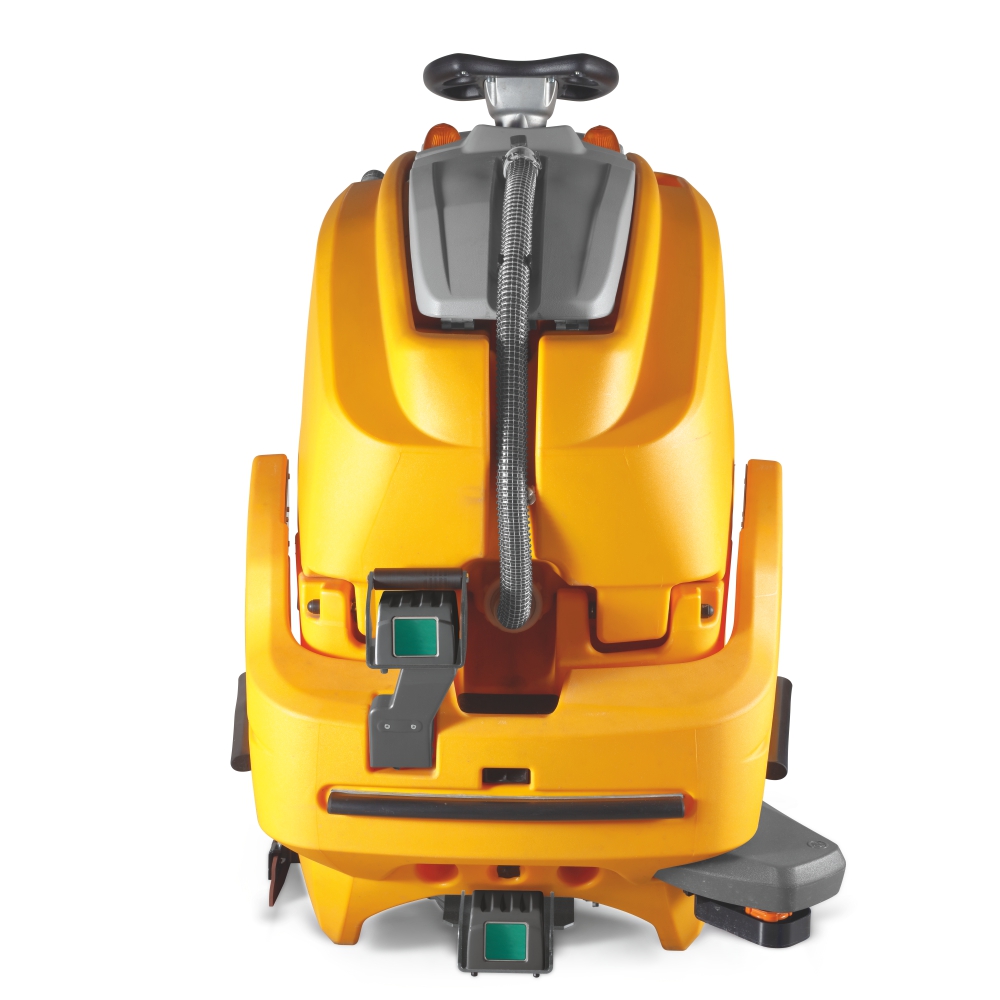

The machine is equipped with three safety systems (Lidar sensors, Livox Mid-70, ultrasonic sensors) that, working simultaneously, ensure the highest level of safety.
Indeed, R-Quartz manages new situations not integrated in the learning process: if the machine detects an unexpected obstacle, it tries to avoid it or stops and it resumes execution from the point where the robot stopped. If one of the three lateral bumper slightly bumps into an obstacle, the machine stops immediately: this ensures operator and place safety.

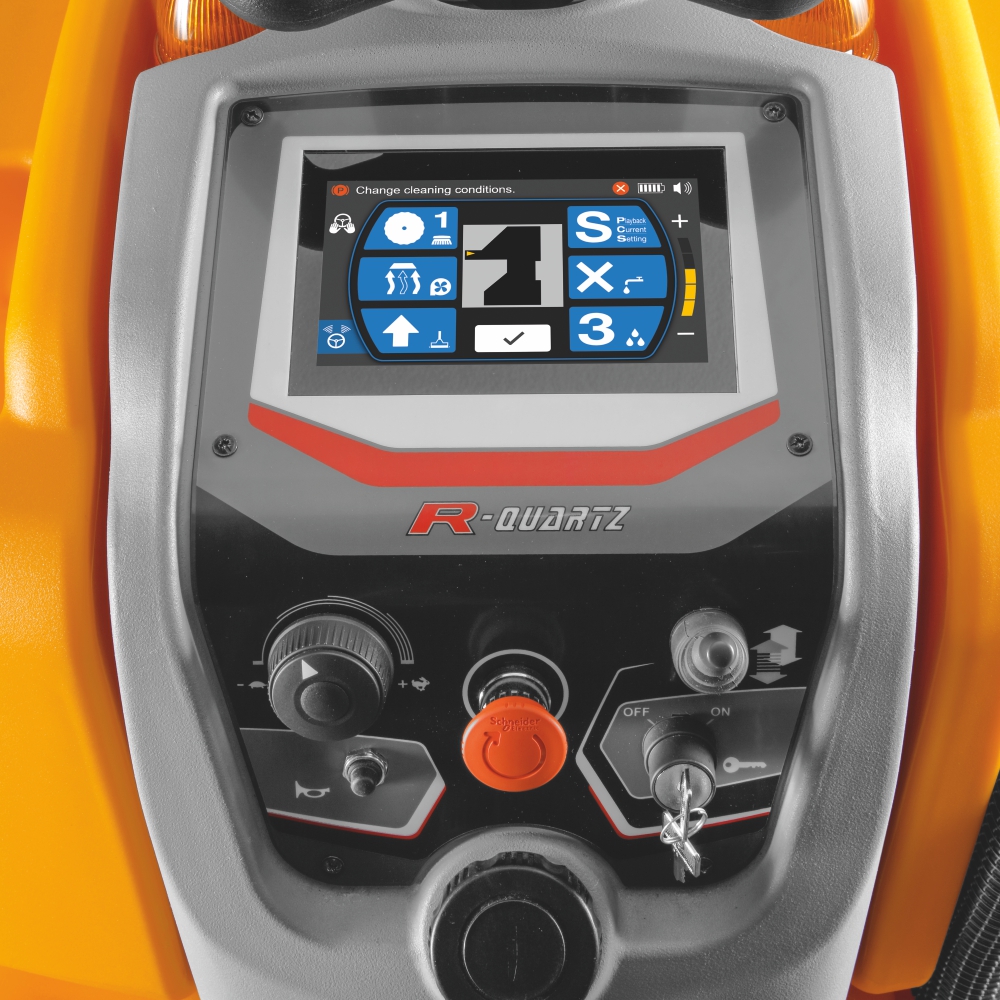

Thanks to our Telematics system it is possible to control the machine functions and productivity. If the machine does not resume the execution from the point it stopped, it sends a push notification to your smartphone.

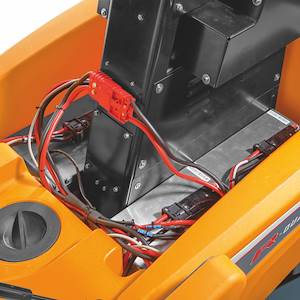

R-quartz is equipped with Ecogreen systems (3S e 3SD) and they ensure economic saving and reduce the environmental impact. Moreover, Lithium batteries ensure up to 6 hours of productivity and a quick charge in 5 hours.
Theoretical productivity: 3150 m2/h
Characteristics
Ride-on machine with traction
Ride-on machine with traction
Power supply 24V/330Ah
Power supply 24V/330Ah
Cleaning width 700mm
Cleaning width 700mm
Brushes pressure adjustable - - -
Brushes pressure adjustable - - -
Battery autonomy 6h
Battery autonomy 6h
Solution tank / recovery tank 100/106l
Solution tank / recovery tank 100/106l

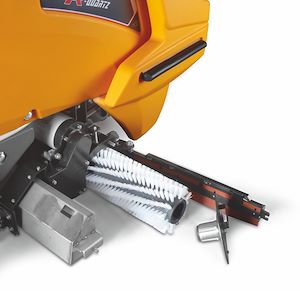

Cylindrical brushes 2x150mm
Cylindrical brushes 2x150mm
Brushes speed: 765 rpm
Brushes speed: 765 rpm
Technical data
Squeegee width
965 mm
Brushes motor
2x600 Watt
Maximum gradient
10%
Suction motor
570 Watt
Suction vacuum
160 mbar
Detergent solution tank
7 l
Machine length
1553 mm
Machine width
922 mm
Machine height
1350 mm
Machine weight (with batteries Li)
302 kg
Traction motor
500 Watt
Maximum forward speed
4.5 km/h
Batteries compartment length x2
535 mm
Batteries compartment width x2
190 mm
Batteries compartment height x2
325 mm
Class
|||
Protection level
IP X3
Loudness Modality Standard
68 dB (A)
Loudness Modality “silence”
66 dB (A)
Loudness Modality “silence lev.2”
60 dB (A)
Brushes and pad holder
Brushes

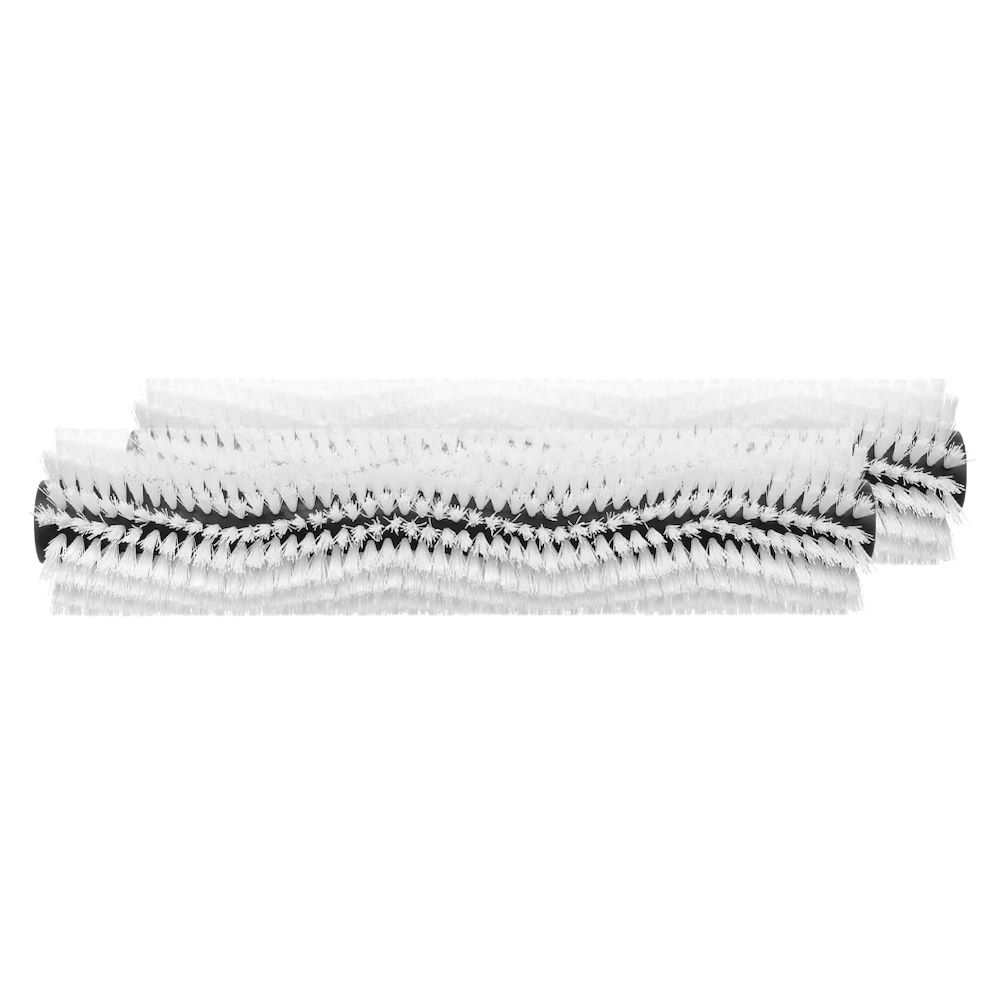

Material: NYLON<br />Ø brush: 150 mm <br />Length: 650 mm<br />Ø bristle: 0,3 mm <br />Cod: 48906100
Material: NYLON
Ø brush: 150 mm
Length: 650 mm
Ø bristle: 0,3 mm
Cod: 48906100
Material: PPL<br />Ø brush: 150 mm <br />Length: 650 mm<br />Ø bristle: 0,7 mm <br />Cod: 48906020
Material: PPL
Ø brush: 150 mm
Length: 650 mm
Ø bristle: 0,7 mm
Cod: 48906020

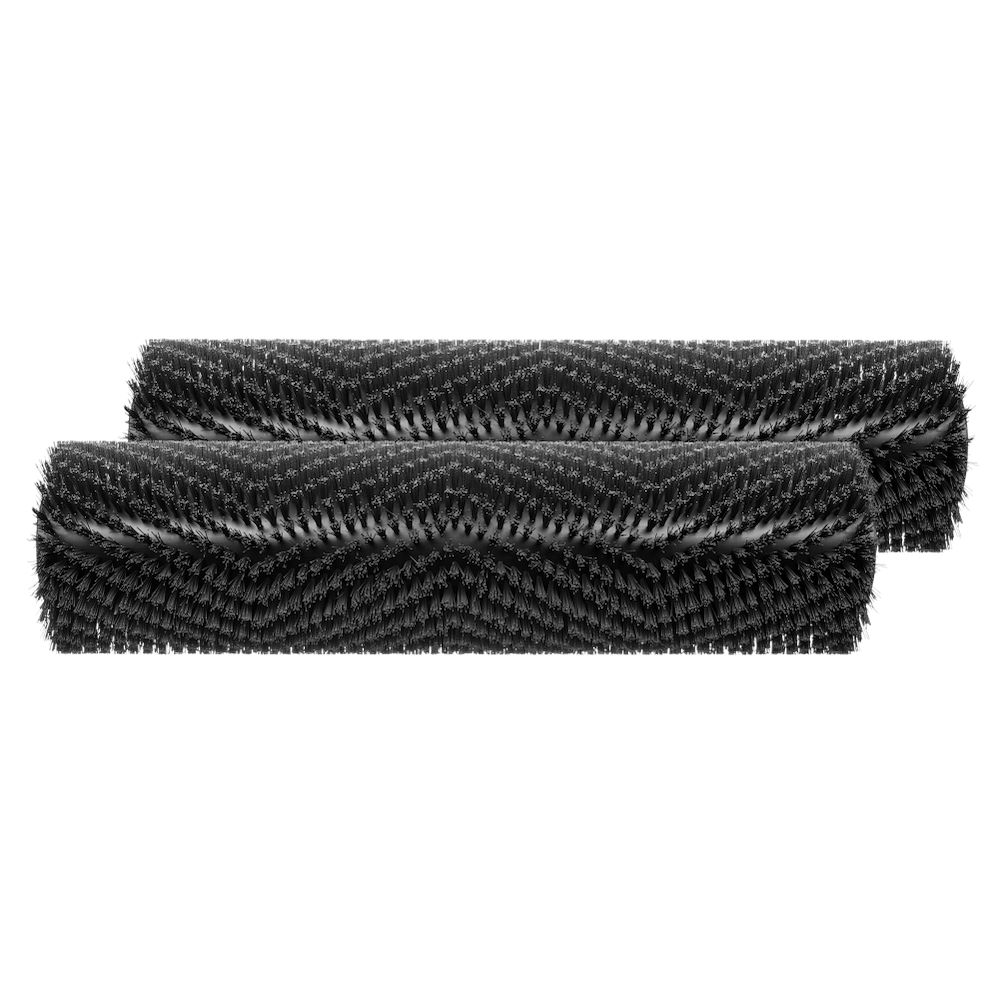

Material: PPL<br />Ø brush: 150 mm <br />Length: 650 mm<br />Ø bristle: 1 mm <br />Cod: 48906060
Material: PPL
Ø brush: 150 mm
Length: 650 mm
Ø bristle: 1 mm
Cod: 48906060
Material: abrasive bristles<br />Ø brush: 150 mm <br />Length: 650 mm <br />Cod: 48906080
Material: abrasive bristles
Ø brush: 150 mm
Length: 650 mm
Cod: 48906080
Equipment Standard equipment:

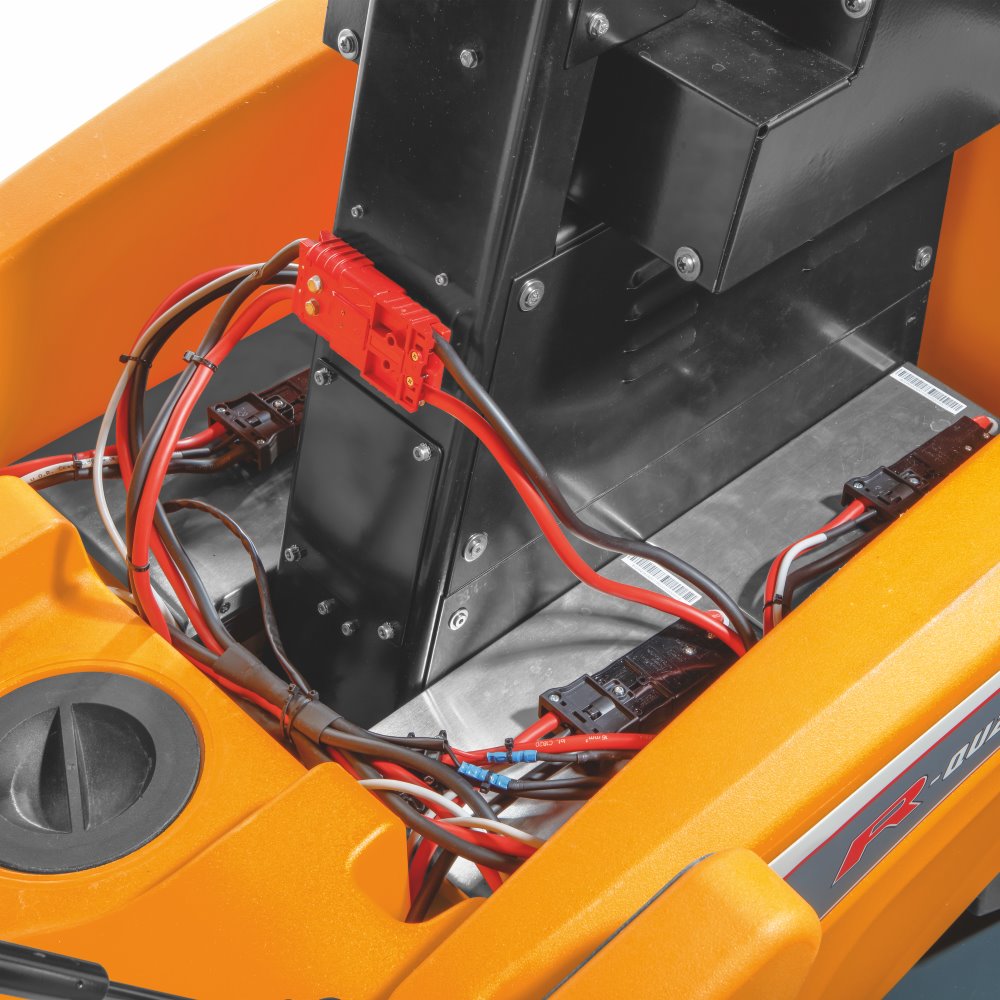

Lithium battery+
Lithium battery
Telematics+
Telematics
3SD system+
3SD system
Optional:
Ozone system+
Ozone system
