coral 50
coral 50coral 50coral 50coral 50coral 50coral 50coral 50coral 50
Coral

Scrubber coral 50

Ride-on scrubber coral 50

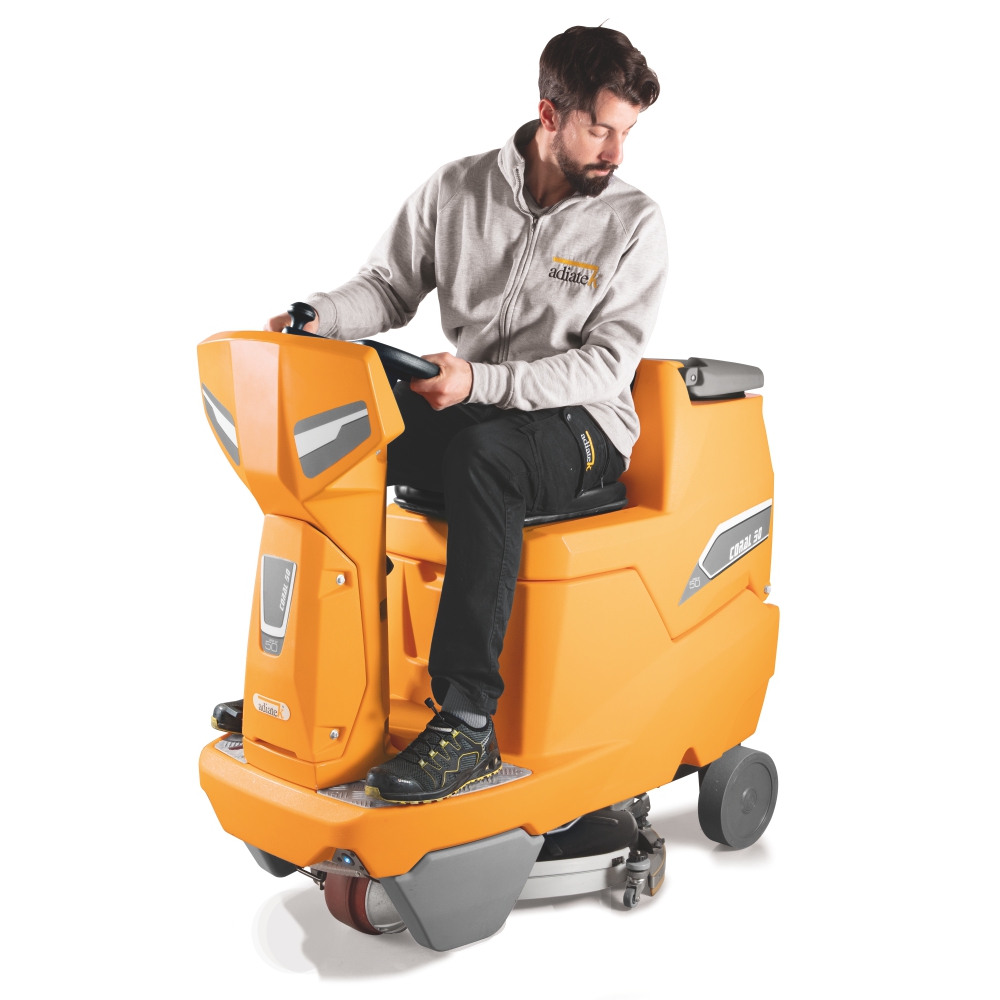

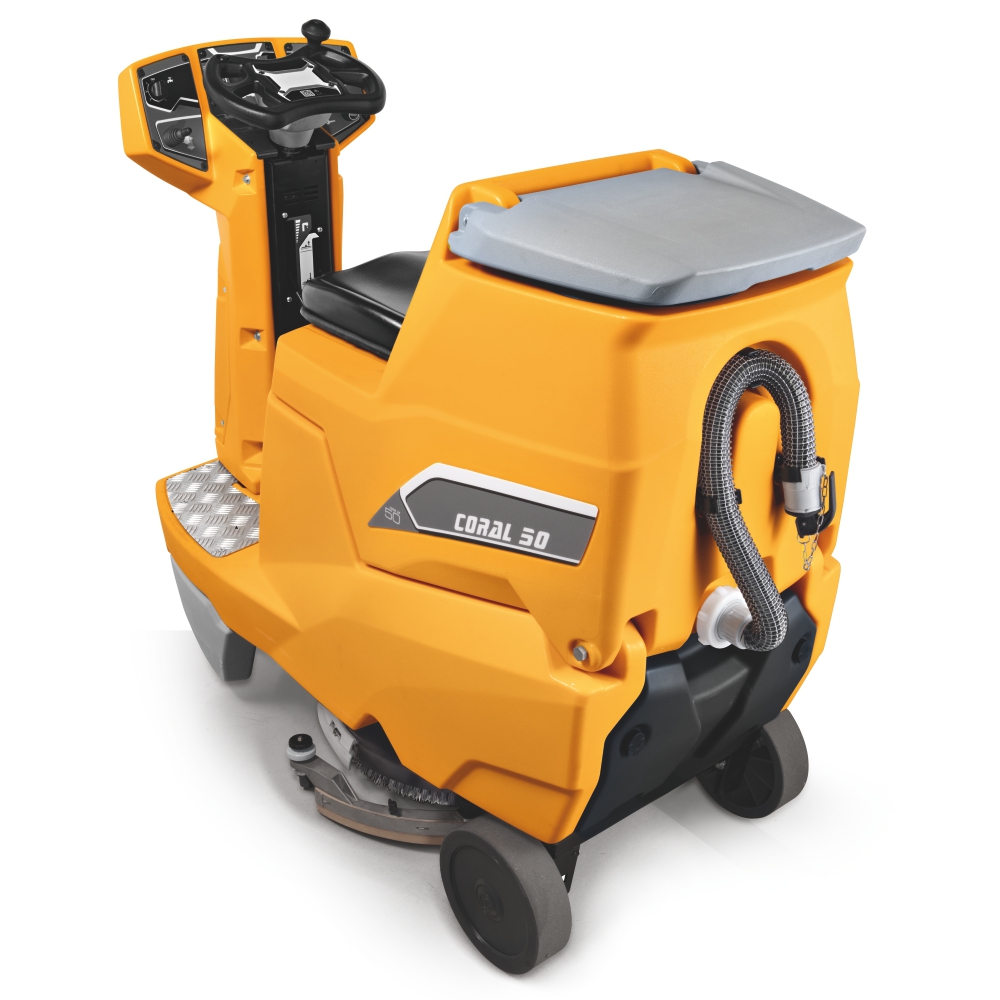

coral 50 is the most compact ride-on floor scrubber in the Adiatek range.

The ergonomic design and compact dimensions allow the machine to move easily in narrow spaces and cluttered areas.

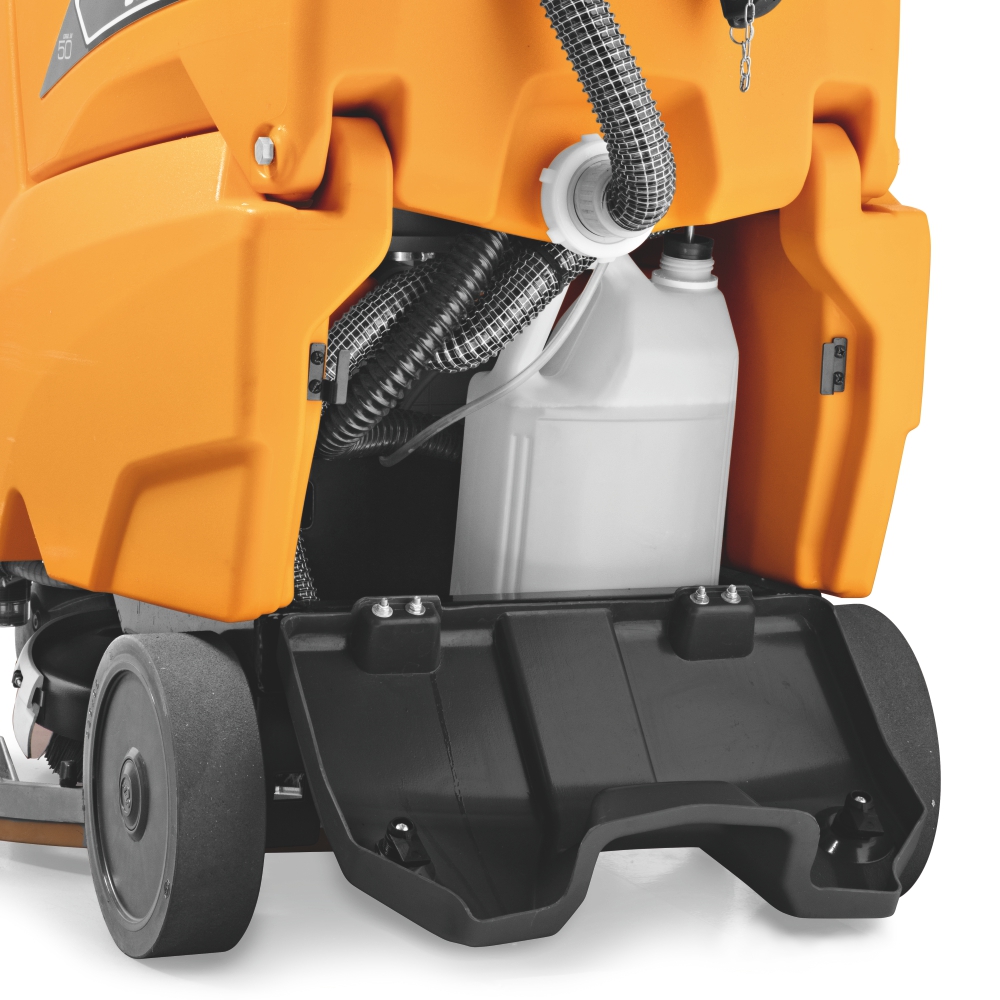

The solution tank, containing up to 70l, ensures autonomy of 2h.
On the coral 50, equipped with a single 20" brush, the brush base maintenance is practical and quick, thanks to the automatic hooking-unhooking system.
Theoretical productivity: 2032 m2/h
Characteristics
Ride-on machine with traction
Ride-on machine with traction
Power supply 24V/110Ah
Power supply 24V/110Ah
Cleaning width 508mm
Cleaning width 508mm
Brushes pressure adjustable max.30kg
Brushes pressure adjustable max.30kg
Battery autonomy 2h
Battery autonomy 2h
Solution tank / recovery tank 70/75l
Solution tank / recovery tank 70/75l
Disc brush 1x508mm
Disc brush 1x508mm
Brushes speed 140rpm
Brushes speed 140rpm
Technical data
Loudness Modality Standard
67 dB (A)
Loudness Modality “silence”
60 dB (A)
Maximum forward speed
5 km/h
Squeegee width
705 mm
Brushes motor
380 Watt
Motion system
automatic
Maximum gradient
10%
Suction motor
490 Watt
Suction vacuum
120 mbar
Machine length
1335 mm
Machine width (with squeegee)
705 mm
Machine height
1215 mm
Machine weight w/o battery
154 kg
Traction motor
300 Watt
Batteries compartment length
342 mm
Batteries compartment width
363 mm
Batteries compartment height
307 mm
Class
|||
Protection level
IP X3
Brushes and pad holder
Brushes
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,3 mm <br />Cod: 48902010
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,3 mm
Cod: 48902010
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,6 mm <br />Cod: 48902050
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,6 mm
Cod: 48902050
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,7 mm<br />Cod: 48902020
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,7 mm
Cod: 48902020
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,9 mm <br />Cod: 48902030
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,9 mm
Cod: 48902030
Material: Mix 5<br />Ø brush: 508 mm <br />Cod: 48902060
Material: Mix 5
Ø brush: 508 mm
Cod: 48902060
Material: abrasive bristles<br />Ø brush: 508 mm<br />Ø bristle: 1,2 mm<br />Cod: 48902040
Material: abrasive bristles
Ø brush: 508 mm
Ø bristle: 1,2 mm
Cod: 48902040
Pad Holder
Pad holder cl green<br />Ø disc: 495 mm <br />Cod: 48802010
Pad holder cl green
Ø disc: 495 mm
Cod: 48802010
Batteries and chargers
12V 85Ah5 AGM battery
12V 85Ah5 AGM battery
12V 77Ah5 gel battery
12V 77Ah5 gel battery
12V 105Ah5 gel battery
12V 105Ah5 gel battery
12V 110Ah5 tubular battery
12V 110Ah5 tubular battery
Battery charger 24V/12A high frequency lead and gel
Battery charger 24V/12A high frequency lead and gel
Battery charger on board
Battery charger on board
Accessories
Coupling assembly accessories
Coupling assembly accessories
