Quartz 50
Quartz 50Quartz 50Quartz 50Quartz 50Quartz 50
Quartz

Quartz 50

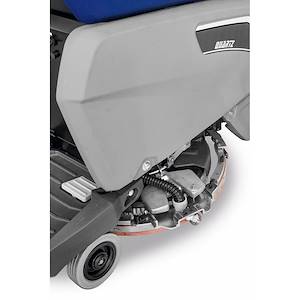

The QUARTZ 50 combines the comfort of an on-board machine to the practicality of a small scrubber.
Thanks to the 90° steering and the squeegee rotation that follows the machine on every curve, it is possible to clean even in narrow areas.
Despite the small dimensions, it is provided with several comforts:
-practical digital display
-clean water level hose
- a cap complete with an extractable hose, to load the water in the solution tank

The several QUARTZ optional equipment are available, like:
-Telematics
-On-board battery charger
-Brooms side support
-Solution saving system (3S) or detergent solution saving system (3SD)
-Ozone system.
Theoretical productivity: 2032 m2/h
Characteristics
Ride-on machine with traction
Ride-on machine with traction
Power supply 24V/110Ah
Power supply 24V/110Ah
Cleaning width 508mm
Cleaning width 508mm
Brushes pressure 22kg
Brushes pressure 22kg
Battery autonomy 2h
Battery autonomy 2h
Solution tank / recovery tank 55/80l
Solution tank / recovery tank 55/80l
Disc brush 1x508mm
Disc brush 1x508mm
Brushes speed 140rpm
Brushes speed 140rpm
Technical data
Squeegee width
705 mm
Brushes motor
380 Watt
Motion system
automatic
Maximum gradient
10%
Suction motor
490 Watt
Suction vacuum
120 mbar
Machine length
1220 mm
Machine width (with squeegee)
705 mm
Machine height
1340 mm
Machine weight w/o battery
171 kg
Traction motor
280 Watt
Maximum forward speed
4 km/h
Batteries compartment length
365 mm
Batteries compartment width
338 mm
Batteries compartment height
290 mm
Class
|||
Protection level
IP 23
Brushes and pad holder
Brushes
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,3 mm <br />Cod: 48902010
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,3 mm
Cod: 48902010
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,6 mm <br />Cod: 48902050
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,6 mm
Cod: 48902050
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,7 mm<br />Cod: 48902020
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,7 mm
Cod: 48902020
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,9 mm <br />Cod: 48902030
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,9 mm
Cod: 48902030
Material: Mix 5<br />Ø brush: 508 mm <br />Cod: 48902060
Material: Mix 5
Ø brush: 508 mm
Cod: 48902060
Material: abrasive bristles<br />Ø brush: 508 mm<br />Ø bristle: 1,2 mm<br />Cod: 48902040
Material: abrasive bristles
Ø brush: 508 mm
Ø bristle: 1,2 mm
Cod: 48902040
Pad Holder
Pad holder cl green<br />Ø disc: 495 mm <br />Cod: 48802010
Pad holder cl green
Ø disc: 495 mm
Cod: 48802010
Batteries and chargers
12V 85Ah5 AGM battery
12V 85Ah5 AGM battery
12V 77Ah5 gel battery
12V 77Ah5 gel battery
12V 105Ah5 gel battery
12V 105Ah5 gel battery
12V 110Ah5 tubular battery
12V 110Ah5 tubular battery
Battery charger 24V/12A high frequency lead and gel
Battery charger 24V/12A high frequency lead and gel
Battery charger on board
Battery charger on board
Accessories
Kit trailer
Kit trailer
Coupling assembly accessories
Coupling assembly accessories
