ruby 48bh 3SD
ruby 48bh 3SDruby 48bh 3SDruby 48bh 3SDruby 48bh 3SDruby 48bh 3SD
Ruby

ruby 48bh 3SD

Ruby 48bh 3SD is single brush scrubber designed for a precise and environment friendly cleaning, that avoids the waste of water and detergent solution.
It is provided with an intuitive digital dashboard and display and a battery charger that can download the information regarding the last 100 charging cycles of the batteries.

The 3SD system is a standard equipment on this model and allows a restrained detergent solution consumption in order to avoid the waste of water and solution. The system lets the operator adjust the clean water flow on 7 different levels and 5 different detergent percentages. A practical hose allows then the possibility to recover the unused detergent solution.
Theoretical productivity: 2030 m2/h
Characteristics
Walk behind machine with traction
Walk behind machine with traction
Power supply 24V/110Ah
Power supply 24V/110Ah
Cleaning width 508mm
Cleaning width 508mm
Brushes pressure 30kg
Brushes pressure 30kg
Battery autonomy 2-4h
Battery autonomy 2-4h
Solution tank / recovery tank 40/42l
Solution tank / recovery tank 40/42l
Disc brush 1x508mm
Disc brush 1x508mm
Brushes speed 150rpm
Brushes speed 150rpm
Technical data
Squeegee width
770 mm
Brushes motor
450 Watt
Motion system
automatic
Maximum gradient
2%
Suction motor
450 Watt
Suction vacuum
120 mbar
Detergent solution tank
3 l
Machine length
1207 mm
Machine width
560 mm
Machine height
1068 mm
Machine weight w/o battery
91 kg
Traction motor
120 Watt
Maximum forward speed
4 km/h
Batteries compartment length
350 mm
Batteries compartment width
342 mm
Batteries compartment height
295 mm
Class
|||
Protection level
IP 23
oudness
<70 dB (A)
Brushes and pad holder
Brushes
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,3 mm <br />Cod: 48902010
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,3 mm
Cod: 48902010
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,6 mm <br />Cod: 48902050
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,6 mm
Cod: 48902050
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,7 mm<br />Cod: 48902020
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,7 mm
Cod: 48902020
Material: PPL<br />Ø brush: 508 mm<br />Ø bristle: 0,9 mm <br />Cod: 48902030
Material: PPL
Ø brush: 508 mm
Ø bristle: 0,9 mm
Cod: 48902030
Material: Mix 5<br />Ø brush: 508 mm <br />Cod: 48902060
Material: Mix 5
Ø brush: 508 mm
Cod: 48902060
Material: abrasive bristles<br />Ø brush: 508 mm<br />Ø bristle: 1,2 mm<br />Cod: 48902040
Material: abrasive bristles
Ø brush: 508 mm
Ø bristle: 1,2 mm
Cod: 48902040
Pad Holder
Pad holder cl green<br />Ø disc: 495 mm <br />Cod: 48802010
Pad holder cl green
Ø disc: 495 mm
Cod: 48802010
Batteries and chargers
12V 77Ah5 gel battery
12V 77Ah5 gel battery
12V 105Ah5 gel battery
12V 105Ah5 gel battery
12V 110Ah5 tubular battery
12V 110Ah5 tubular battery

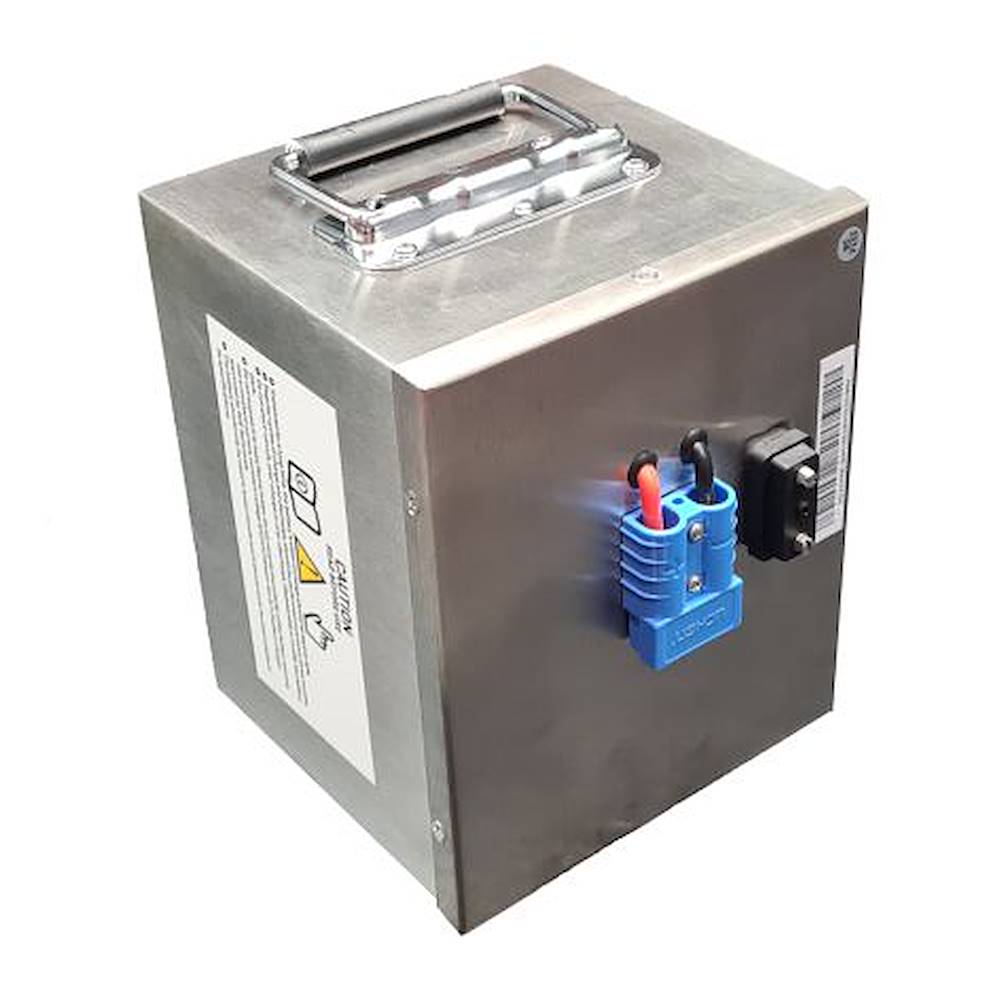

Lithium battery 24V 60Ah
Lithium battery 24V 60Ah
12V 85Ah5 AGM battery
12V 85Ah5 AGM battery
Accessories
Hose water load
Hose water load
Cap with hose for the water loading
Cap with hose for the water loading
Equipment Standard equipment:
3SD system+
3SD system
Optional:
Lithium battery
Lithium battery
3SD Ozone system+
3SD Ozone system
