R-Quartz

R-Quartz 80

R-Quartz 80 is the revolutionary autonomous floor scrubber designed to transform the way spaces are cleaned.
Developed in collaboration with Muratec, R-Quartz is based on a well-known and appreciated Adiatek floor scrubber model that has been upgraded with autonomous capabilities. This ensures excellent, high-quality performance while maintaining the reliability of the best traditional machines.

Setting up the maps does not require a specialized technician, guaranteeing a quick setup process. The operator’s “teaching” phase is simple and straightforward, after which R-Quartz maps the work environment with complete safety and autonomy.
The dashboard, equipped with a 7-inch touch screen, enables easy and immediate communication between the machine and the operator. All functions, whether in “operator” or “autonomous” mode, can be easily configured through an intuitive interface and symbols that provide quick access to all work phases with R-Quartz.
There are two learning modes: playback (all selected settings and details are recorded and then reproduced in autonomous mode) and perimeter (manually trace the outer perimeter of the area to be cleaned, and the machine will autonomously manage the entire cleaning process). You can combine these modes to create your own customized sequence.
The machine is also capable of handling new situations: when it encounters an unexpected obstacle, it attempts to avoid it and resumes its path, ensuring maximum safety throughout the operation.

Theoretical productivity: 3645 m2/h
Characteristics
Ride-on machine with traction
Ride-on machine with traction
Power supply 24V/330Ah
Power supply 24V/330Ah
Cleaning width 810mm
Cleaning width 810mm
Brushes pressure adjustable max. 52kg
Brushes pressure adjustable max. 52kg
Battery autonomy 6h
Battery autonomy 6h
Solution tank / recovery tank 100/106l
Solution tank / recovery tank 100/106l
Disc brushes 2x406mm
Disc brushes 2x406mm
Brushes speed 160rpm
Brushes speed 160rpm
Technical data
Squeegee width
965 mm
Brushes motor
2x350 Watt
Maximum gradient
10%
Suction motor
570 Watt
Suction vacuum
160 mbar
Detergent solution tank
7 l
Machine length
1553 mm
Machine width
922 mm
Machine height
1350 mm
Machine weight (with batteries Li)
375 kg
Traction motor
500 Watt
Maximum forward speed
4.5 km/h
Batteries compartment length x2
535 mm
Batteries compartment width x2
190 mm
Batteries compartment height x2
325 mm
Class
|||
Protection level
IP 23
Loudness Modality Standard
68 dB (A)
Loudness Modality “silence”
66 dB (A)
Loudness Modality “silence lev.2”
60 dB (A)
Brushes and pad holder
Brushes
Material: PPL <br />Ø brush: 406 mm <br />Ø bristle: 0,9 mm <br />Cod: 48914020
Material: PPL
Ø brush: 406 mm
Ø bristle: 0,9 mm
Cod: 48914020
Material: Mix 5 <br />Ø brush: 406 mm <br />Cod: 48914080
Material: Mix 5
Ø brush: 406 mm
Cod: 48914080
Material: PPL <br />Ø brush: 406 mm <br />Ø bristle: 0,6 mm <br />Cod: 48914010
Material: PPL
Ø brush: 406 mm
Ø bristle: 0,6 mm
Cod: 48914010
Material: abrasive bristles <br />Ø brush: 406 mm <br />Ø bristle: 1,2 mm <br />Cod: 48914070
Material: abrasive bristles
Ø brush: 406 mm
Ø bristle: 1,2 mm
Cod: 48914070
Pad Holder
Pad holder cl green <br />Ø disc: 385 mm <br />Ø bristle: 1,2 mm <br />Cod: 48814020
Pad holder cl green
Ø disc: 385 mm
Ø bristle: 1,2 mm
Cod: 48814020
Equipment Standard equipment:

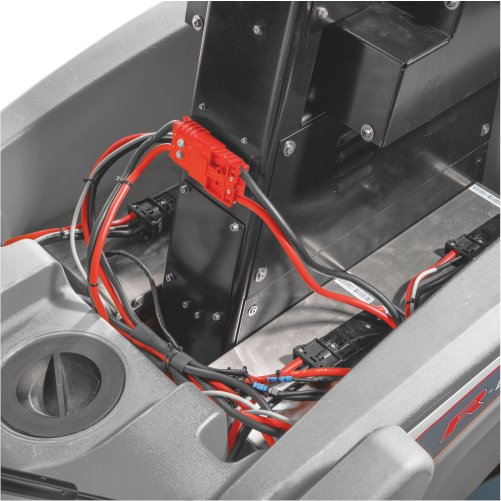

Lithium battery
Lithium battery
Telematics+
Telematics
3SD system+
3SD system
Optional:
